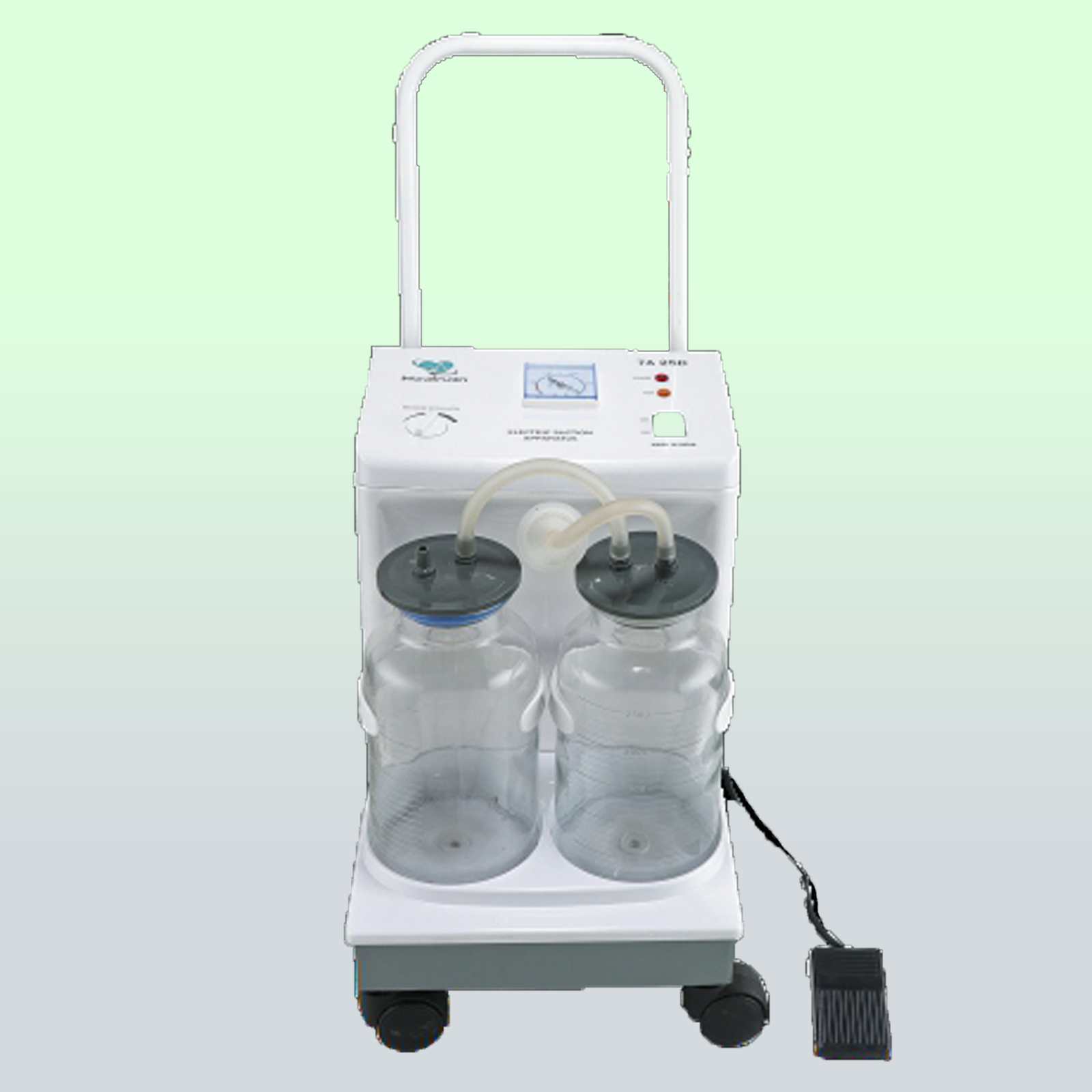

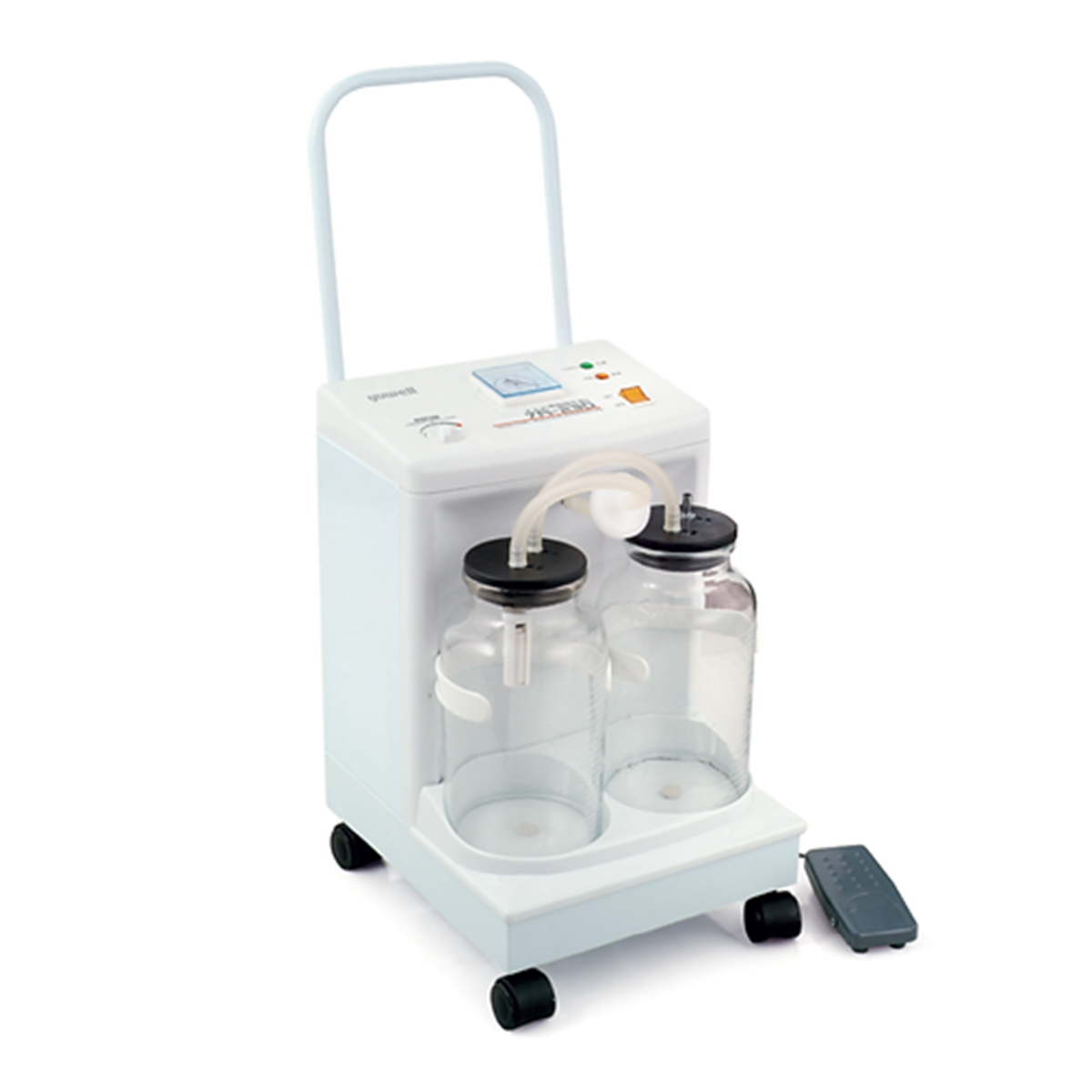

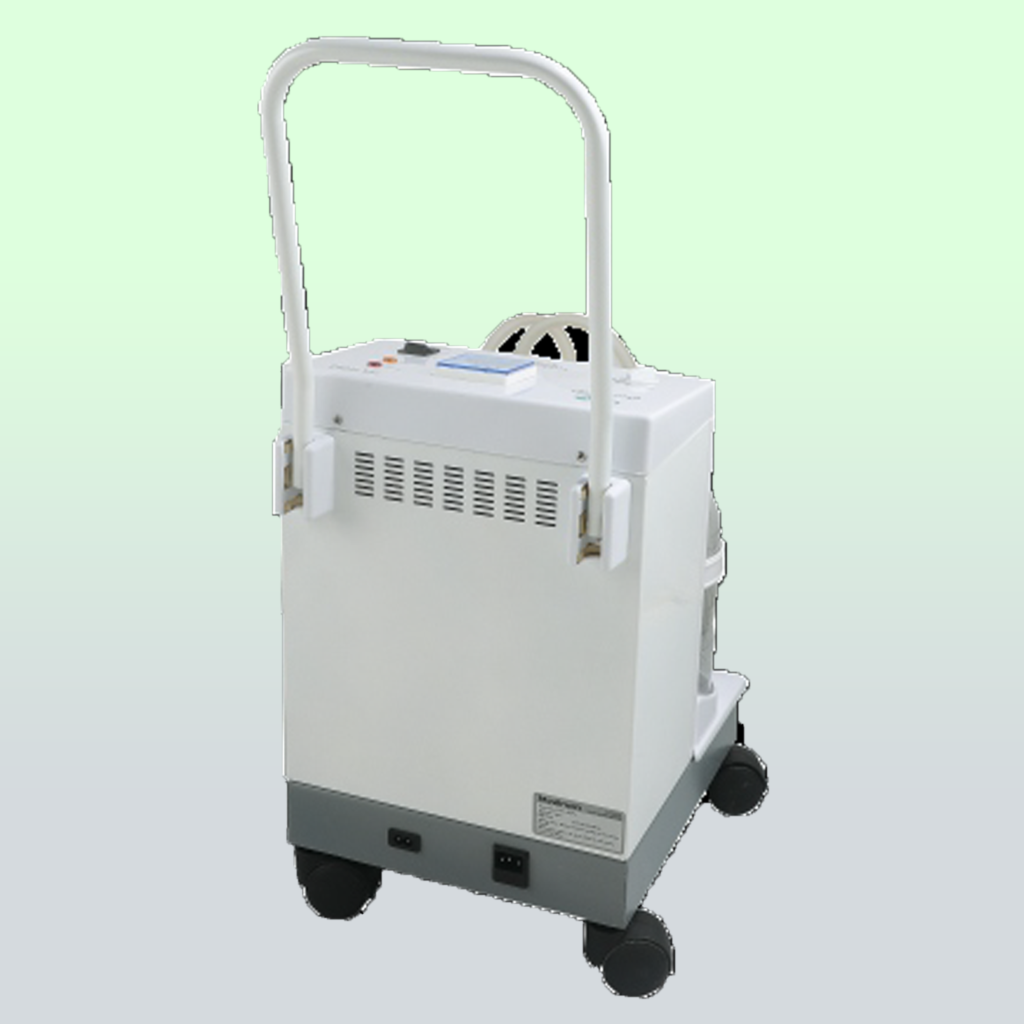

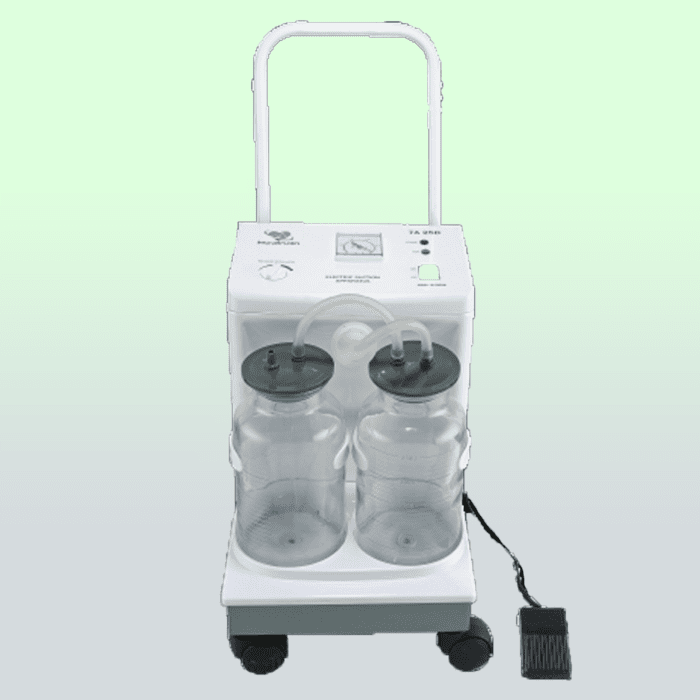

Suction Machine 7A 25D

Adopting oil-free piston pump

Clean-without pollution of oil and smoke

Convenient- need to add oil to maintain daily

Safe -no plus pressure during use.

No flow backward pressure when the machine stops so that the liquid won’t flow backward.

Complete plastic panels, hand-switch, and foot-switch for operating easily.

Select negative pressure at will with no level for pressure adjustment, and overflow protection mechanism, safe and reliable.

Not suitable for continuous use in induced abortions and the inflammable or explodable surroundings.

Technical Data –

Operation Mode: Automatic

Pump Type: Piston Pump

Voltage: AC 220V ± 22V

Number Of Wheels: 4 Wheels

Frequency: 50 Hz ± 1 Hz

Glass Jar Capacity: 2500 ml

Number Of Glass Jars: 2 Jars

Noise: ≤ 65 dB (A)

Weight: 14 kg

Max Negative Pressure Value: >0.09 MPa

Dimensions: 400x355x600 mm (LxWxH)

Max Vacuum: 90 KPa

Tube Material: Silicone Pipe

Power: ≤ 180VAPumping Rate: ≥ 20 L/m

Reservoir Capacity: 2500 ml

Max Continuous Working Time: 30 min

Continuity Rate: 50%

Electrical Appliance Safety Requirement: Class I, Type B

Power Source: Electric
